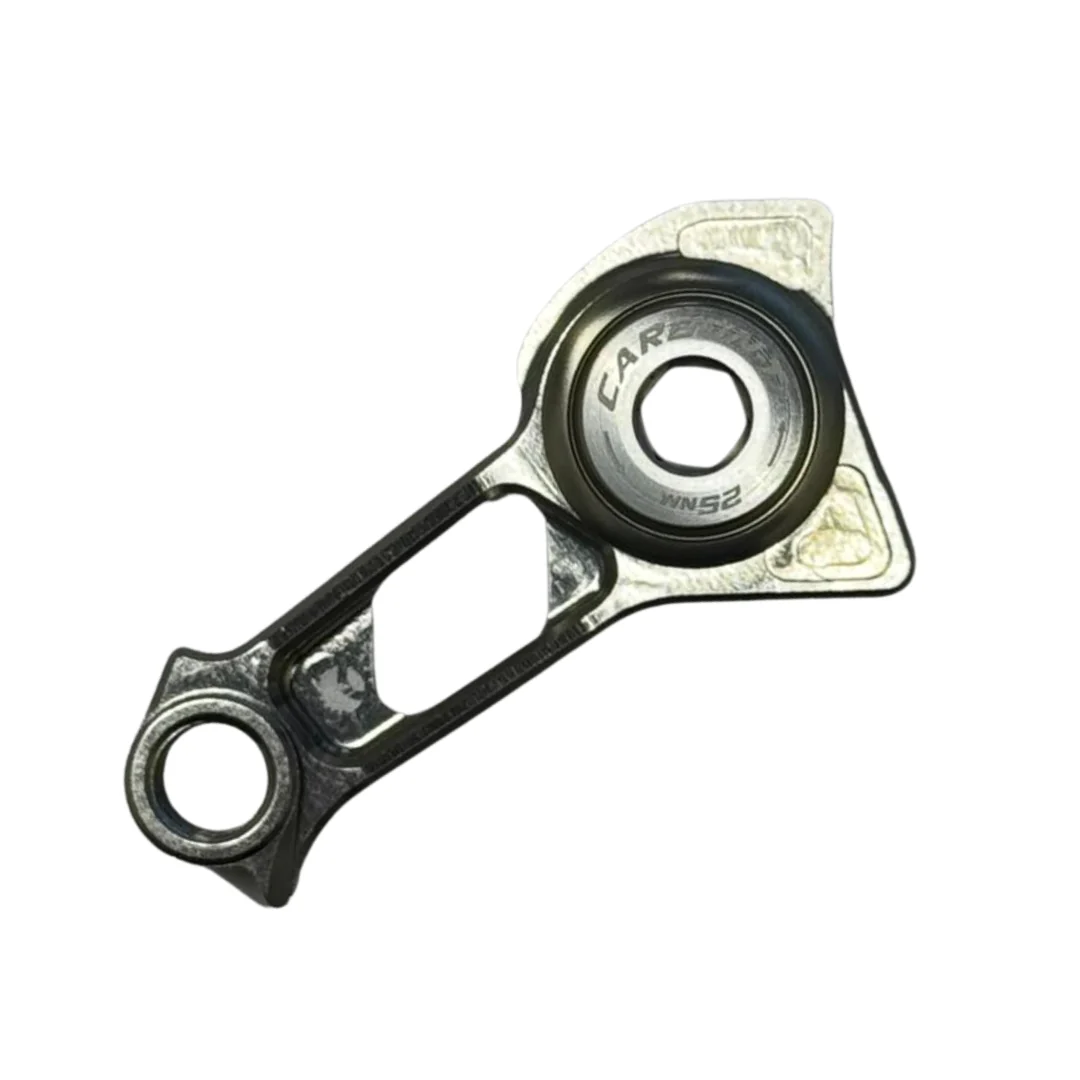

Carbon Ti – X-Hanger DM DA9200 (UDH)

The integrated derailleur hanger, machined from AL7075-T6 alloy using CNC technology, has been developed to optimize shifting performance on MTB, Road, Gravel, Triathlon and Time Trial bikes. The X-Hanger DM DA9200 allows the removal of the derailleur B-Link, creating a stiffer interface between the Shimano rear derailleur and the UDH-compatible frame. The result is smoother and more precise shifting, a significant weight saving, and easier rear wheel removal.

Developed and tested in racing conditions by top professional riders, it delivers an exclusive look and class-leading performance.

Compatibility

Frame and thru-axle compatibility:
• The X-Hanger DM DA9200 is compatible only with frames specifically designed for use with a UDH rear derailleur hanger.
• Thru-axle with M12x1.00 mm thread

Shimano rear derailleurs with removable B-Link:

• Shimano Dura-Ace, Ultegra, 105

X-Bolt UDH bolt compatibility:

• The UDH bolt is compatible with X-Hanger UDH or X-Hanger DM DA9200

Key features
• Extremely high stiffness-to-weight ratio thanks to the full CNC structure.
• Weight saving achieved by removing the rear derailleur B-Link.
• Easier wheel replacement thanks to a stiffer structure and smoother wheel insertion.
• Premium finishes and anodized colors, in true Carbon-Ti style.
• Safety: in the event of a crash or particularly severe impact, the hanger is designed to break at a predefined point in order to protect the frame.

X-Hanger DM DA9200 is designed, developed and manufactured 100% in Italy using top-quality materials and processes.
