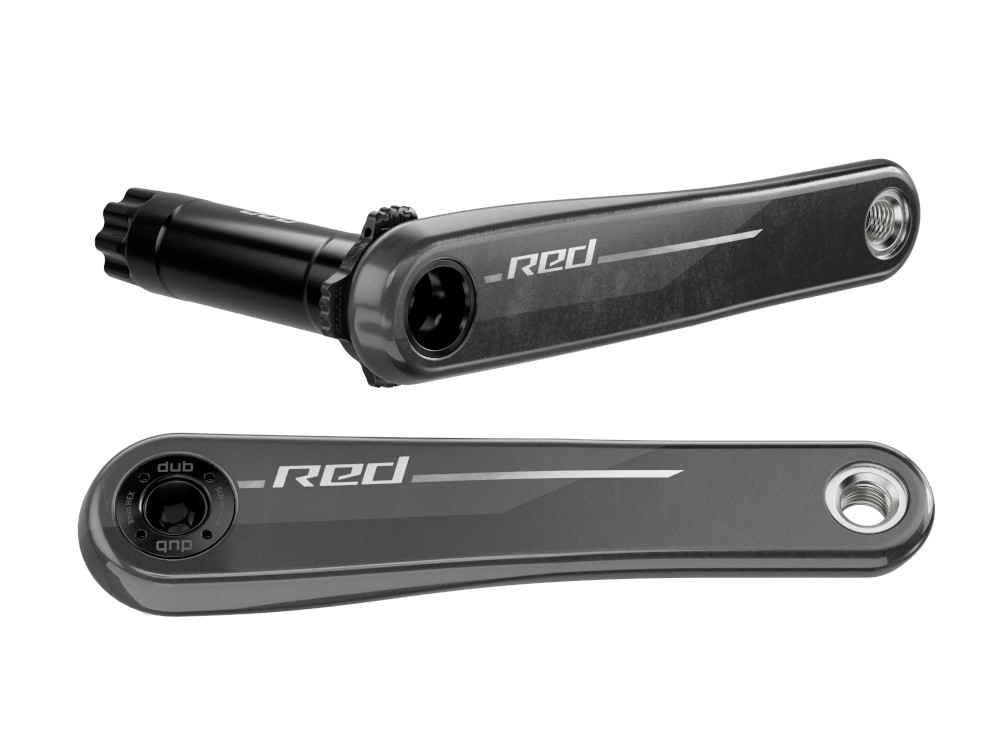

SRAM RED E1 DUB Crank arms – 165mm

Description

The previous version was already one of the lightest cranks on the market. Thanks to an optimized layer construction of the hollow carbon crankarms, the engineers succeeded in reducing the weight of the 2024 version by another 29 grams. The crankshaft was developed for the new DUB Road bottom bracket standard for a wide range of crank applications. The crankshaft is compatible with all standard bottom bracket housings via the corresponding DUB bottom bracket. With the SRAM AXS Powermeter Kit available in our store, the crank can be upgraded to a power measurement system if required.

technical data:

Area of application: road bike, cyclocross, gravel
Material crank arms: UD-Carbon
Crankshaft material: Aluminum
Crankshaft diameter: SRAM DUB Road, 28.99 mm
Crank lengths: 160; 165; 167.5; 170; 172.5 or 175 mm
Spider/chainring mount: Direct Mount | SRAM 8-Bolt
Chainring gradation: none; 1x or 2x possible
Q-factor: 145 mm
Bottom bracket compatibility: SRAM DUB Road (optional, not included)
Rider weight: without restriction
Finish: UD Carbon, glossy
Color decals: silver

Weight according to manufacturer: n.a.
Weight self-weighed: 309g (172.5 mm)

Scope of delivery: 1x SRAM RED DUB crank arms carbon road, without bottom bracket, spider and chainrings
